Technical Details

Make: Somaca

Model: VEW60

Year: 2008

Condition: Currently in production

Power:_ 220Volt, 3 phase, 40 amp service required

Location: Mid West

Price: Call or Email for Pricing

Notes: Buyer responsible for the removal and shipping. Machine still set up. Video below was taken last week 7/31/2025

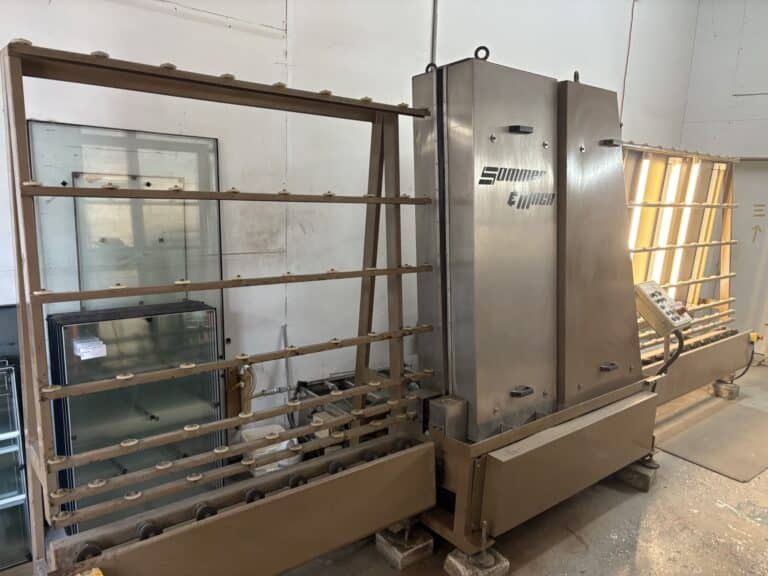

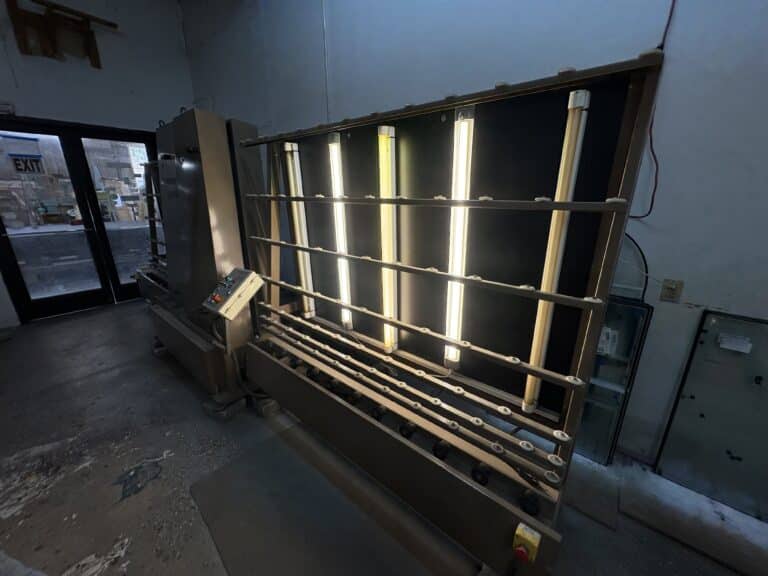

Details:  60″ open top vertical washer The Somaca/CRL VEW-60 Glass Washer cleans glass up to 60 inches (1500 millimeters) tall in one pass.  The wash cabin is stainless steel to resist corrosion. There are fluorescent lights on the discharge conveyor to aid in final inspection of glass. Fully Equipped With All Features Needed for IG Window Fabrication Automatically Adjusts for Glass Thickness Up to 1/2′ (12 mm) Capacities Glass Thicknesses up to 1/2 inch (from 2.5 to 12 millimeters) Minimum Glass Size is four inches (100 millimeters) tall x 16 inches (400 millimeters) in length Maximum Glass Weight is 300 pounds (136 kilograms) Utilities Electrical: Four Motors Running a Total 6.9 HP (5.03 Kw) Largest Motor is 5.5 HP (4 Kw) Voltage required is Three Phase at 60 cycles, 220 volt power Power at Full load current is 37.83 amps – Service requirement 40 amps Total Energy 8.5 Kw Fresh Water: 1.38 gpm (4.48 lpm) @ 30psi (2 atm)
