Model SL40-26
Previous slide
Next slide
|
Specifications:
|
|
|---|---|
|
Manufactured:
|
Italy
|
|
Maximum Glass Size:
|
4000mm x 2600mm ( 157" x 102" )
|
|
Work surface height:
|
Adjstable from 890mm to 960 mm (34.65 to 38.19 in)
|
|
Cutting Speed:
|
180 meters per minute
|
|
Glass Thickness:
|
2-19mm
|
More Details:
Optional Features Available:
- Low-e removal through a system fixed on the cutting head. It uses a vertical wheel that allows the removal of the coating of the glass in rectilinear and shapes. See video below for demonstration.
- Low-e removal through a system fixed on cutting head. It uses a 20 mm router type tool that allows the removal of the coating of the glass in rectilinear and shapes.
- Brushless servomotors X and Y axis increased size to achieve a cutting speed of 200 m/min and acceleration of 1G –10 m/sec2
- Optical reader for single step shape learning and automatic regeneration for directly cutting.
- A labels systems with a Professional Label Printer is fixed directly on board of PC cabinet.
- Software option for precision cutting management of vinyl films applied to glass for reach an excellent vinyl cutting quality of any shape drawings.
- Innovative and unique automatic rotary tool changer with 10 tools always available, fixed directly on the cutting head.(Patented)
- VETROVIEW: Is a break-out display software which runs directly on the cutting table console with a large screen monitor installed in front of the break-out table operator
- Office Key is an additional optimization software license that allows the use of the optimization software from an office PC. Available for Edit-Way or PerfectCut.
- Laser Scanning.
- Breakout table.
To request a quote please fill out this form:
Financing Available
Best pricing plan for you and your business
- $0 Down Program - An easy way to get the equipment you need quickly with no money up front
- 90 Day Deferral Program - This is a great way to generate income on the equipment purchase
Make: Vetromac ( Made in Italy )
Model: SL40-26
Maximum glass size: 4000mm x 2600mm ( 157″ x 102″ )
Overall size of table: 4637mm x 3165mm ( 182″ x 124″ )
Type: CNC glass cutting table with glass loading/unloading belts
Cutting Speed: 180 meters per minute
Glass thickness: 2-19mm ( single strength to 3/4″ )
Options available:
- Low-e removal through a system fixed on the cutting head. It uses a vertical wheel that allows the removal of the coating of the glass in rectilinear and shapes. See video below for demonstration.
- Low-e removal through a system fixed on cutting head. It uses a 20 mm router type tool that allows the removal of the coating of the glass in rectilinear and shapes.
- Brushless servomotors X and Y axis increased size to achieve a cutting speed of 200 m/min and acceleration of 1G –10 m/sec2
- Optical reader for single step shape learning and automatic regeneration for directly cutting.
- A labels systems with a Professional Label Printer is fixed directly on board of PC cabinet.
- Software option for precision cutting management of vinyl films applied to glass for reach an excellent vinyl cutting quality of any shape drawings.
- Innovative and unique automatic rotary tool changer with 10 tools always available, fixed directly on the cutting head.(Patented)
- VETROVIEW: Is a break-out display software which runs directly on the cutting table console with a large screen monitor installed in front of the break-out table operator
- Office Key is an additional optimization software license that allows the use of the optimization software from an office PC. Available for Edit-Way or PerfectCut.
- Air Floating system with Blowers to allow the glass plate to be moved easily by hand on the cutting machine table.
- Laser Scanning.
- Automatic loading system
- Breakout table.

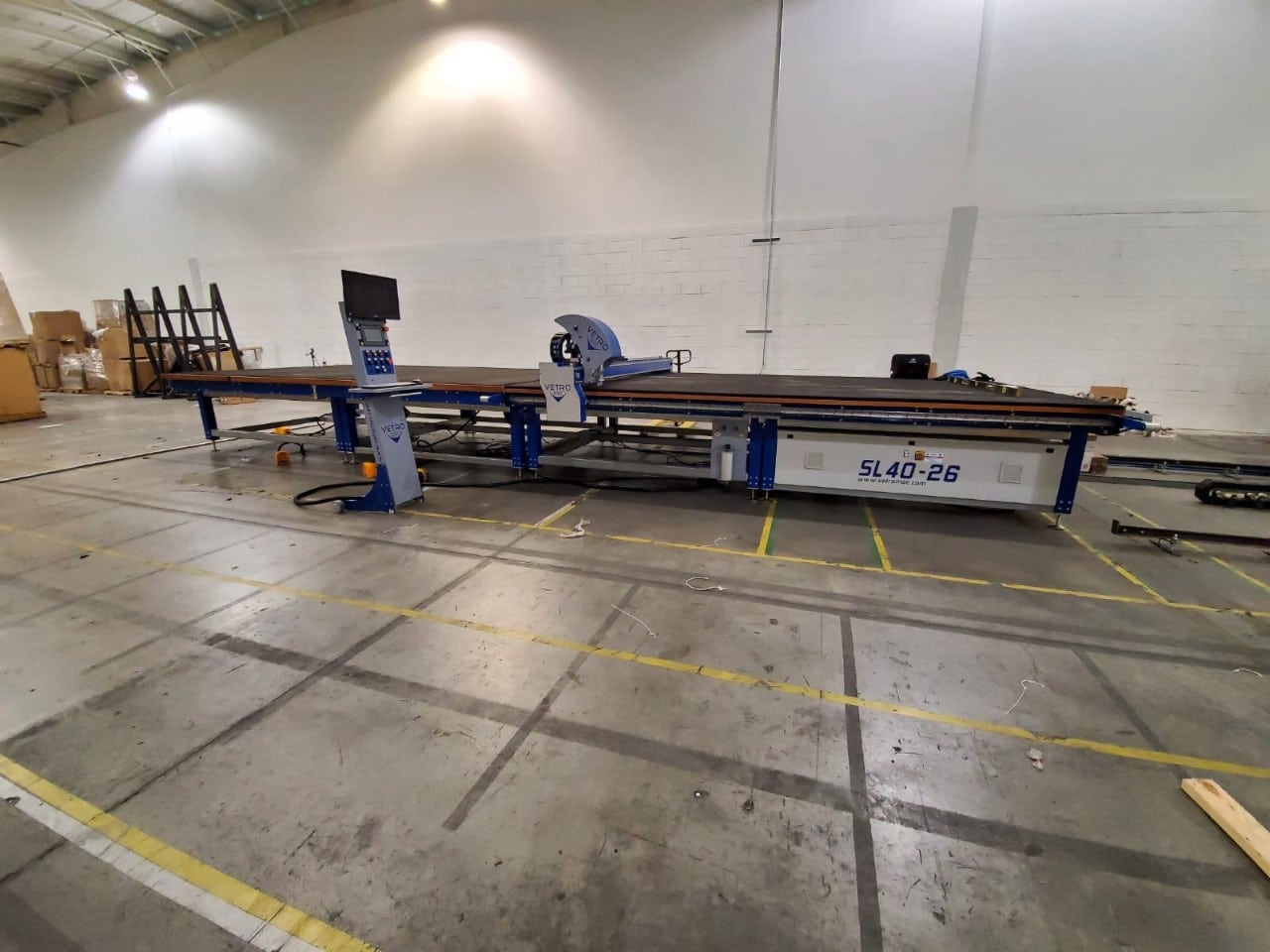

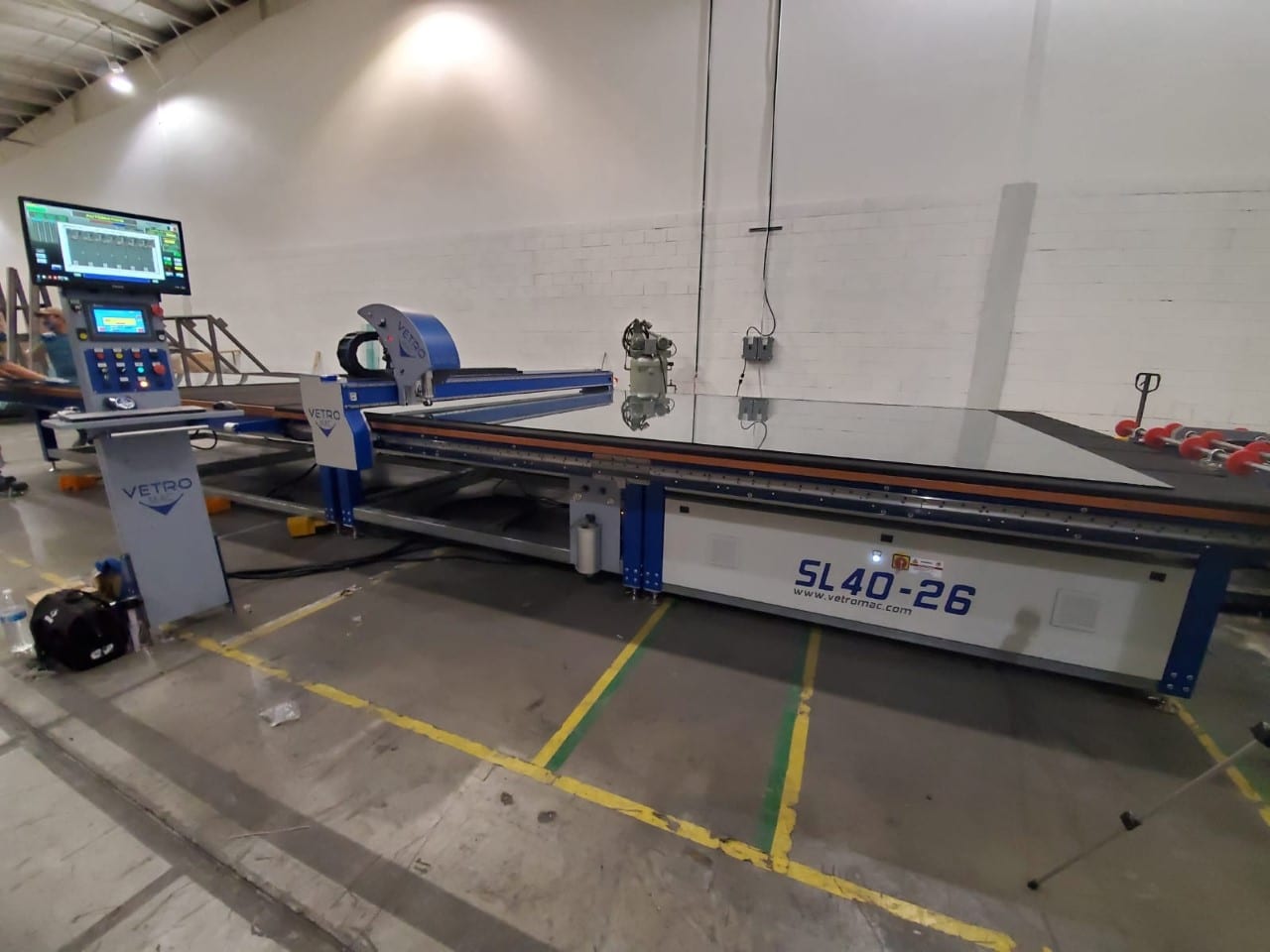

SL-40-26 Cutting Table

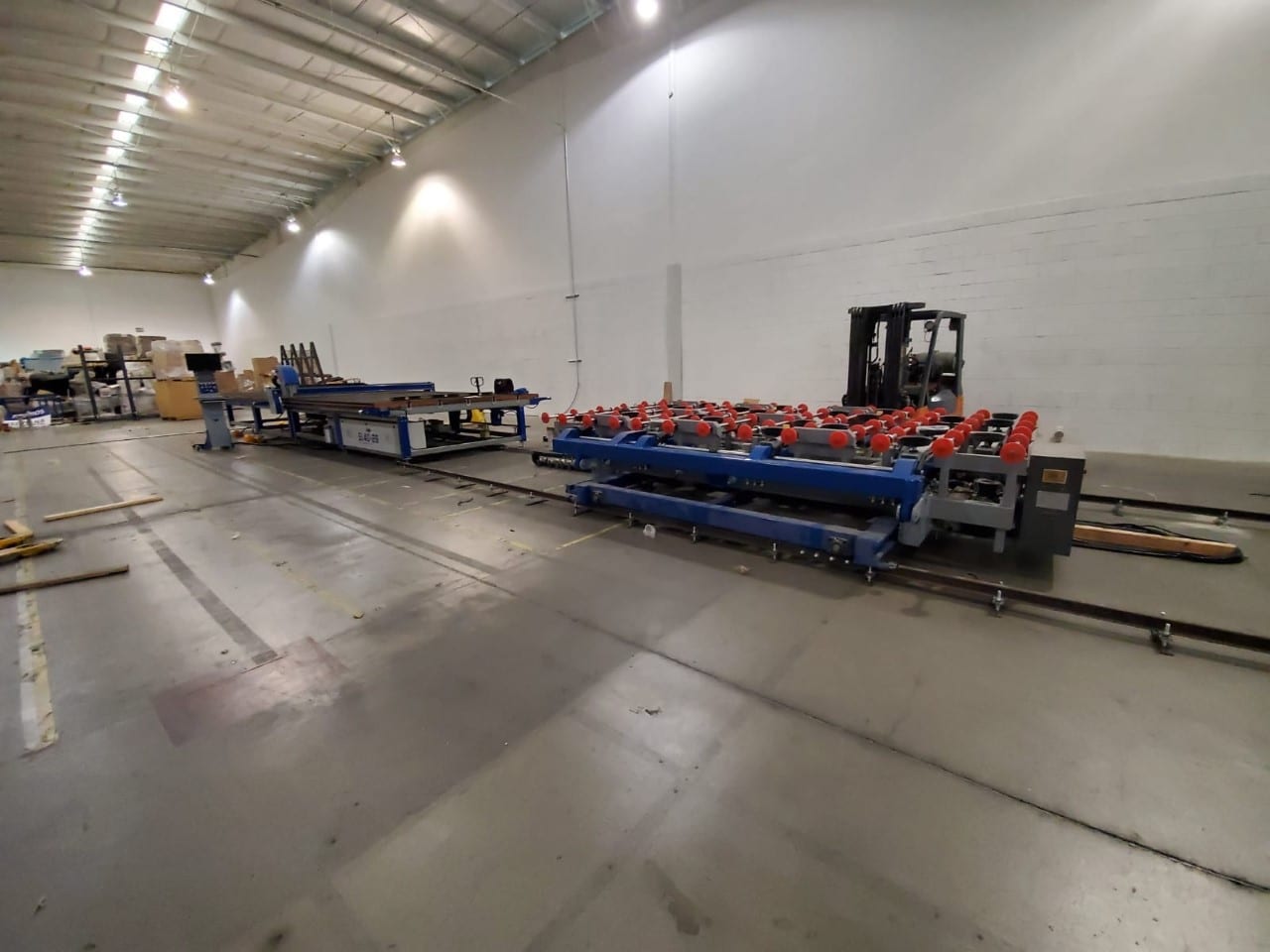

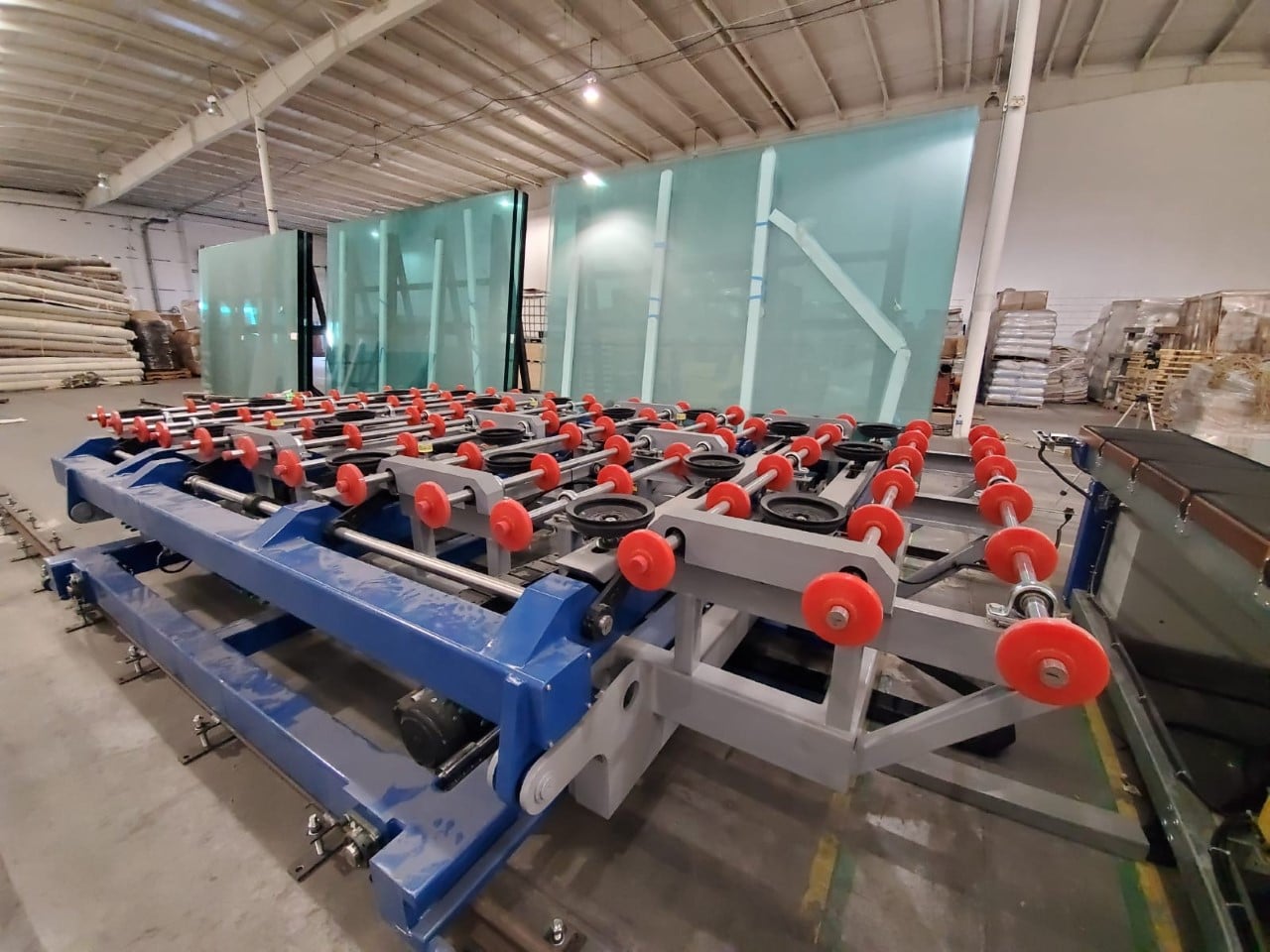

SL-40-26 Cutting Table with loading table

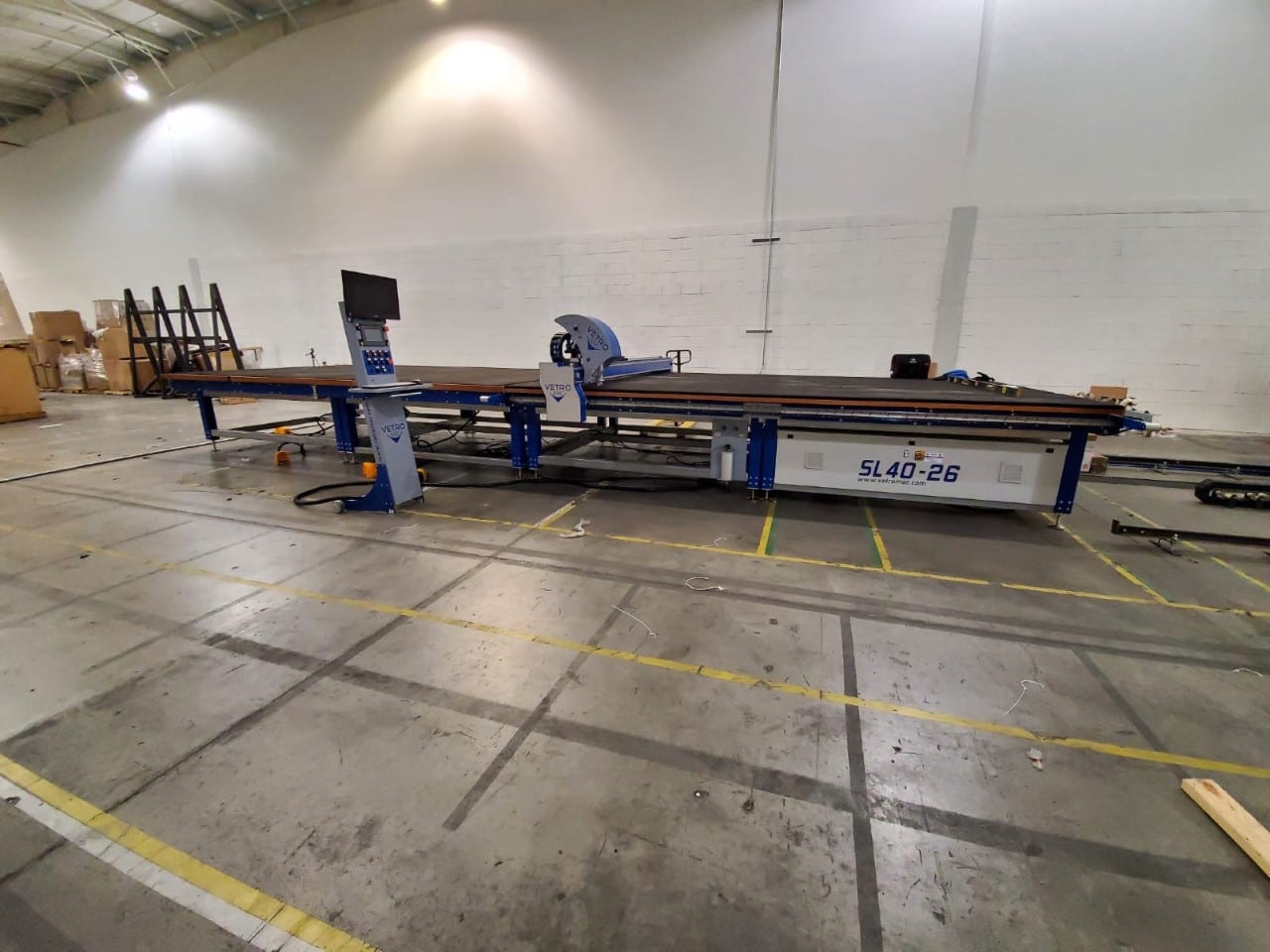

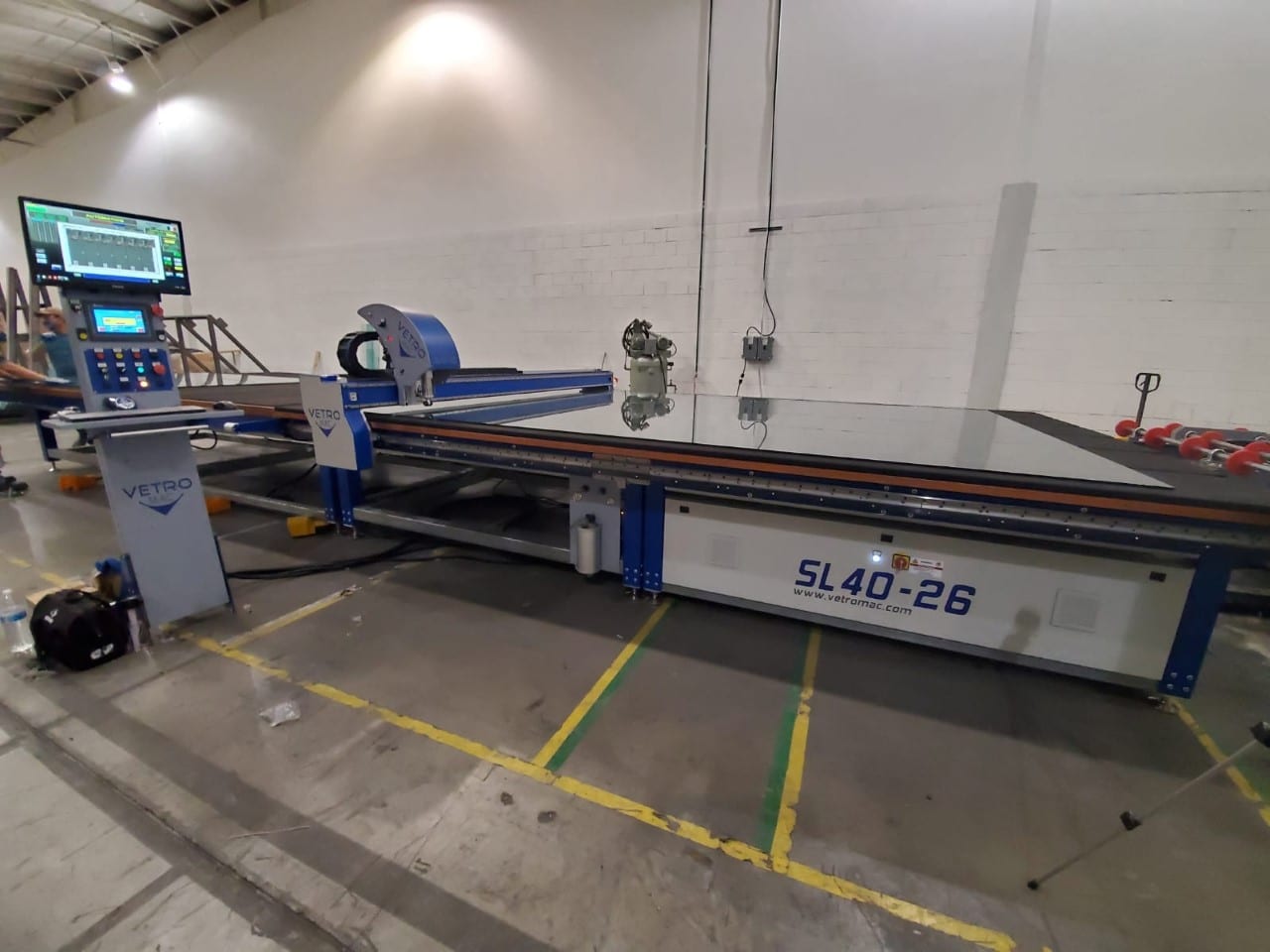

SL-40-26 Cutting Table

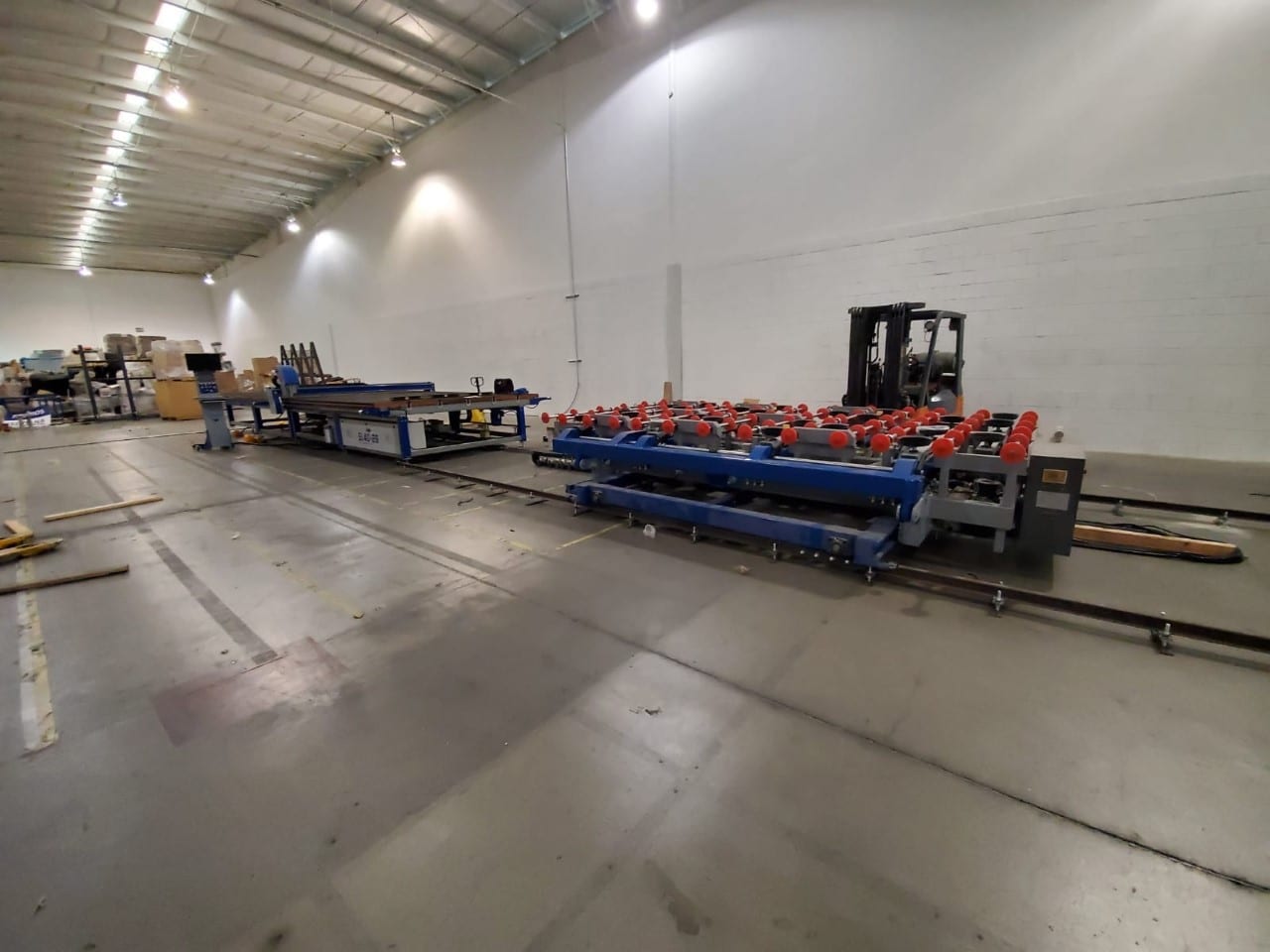

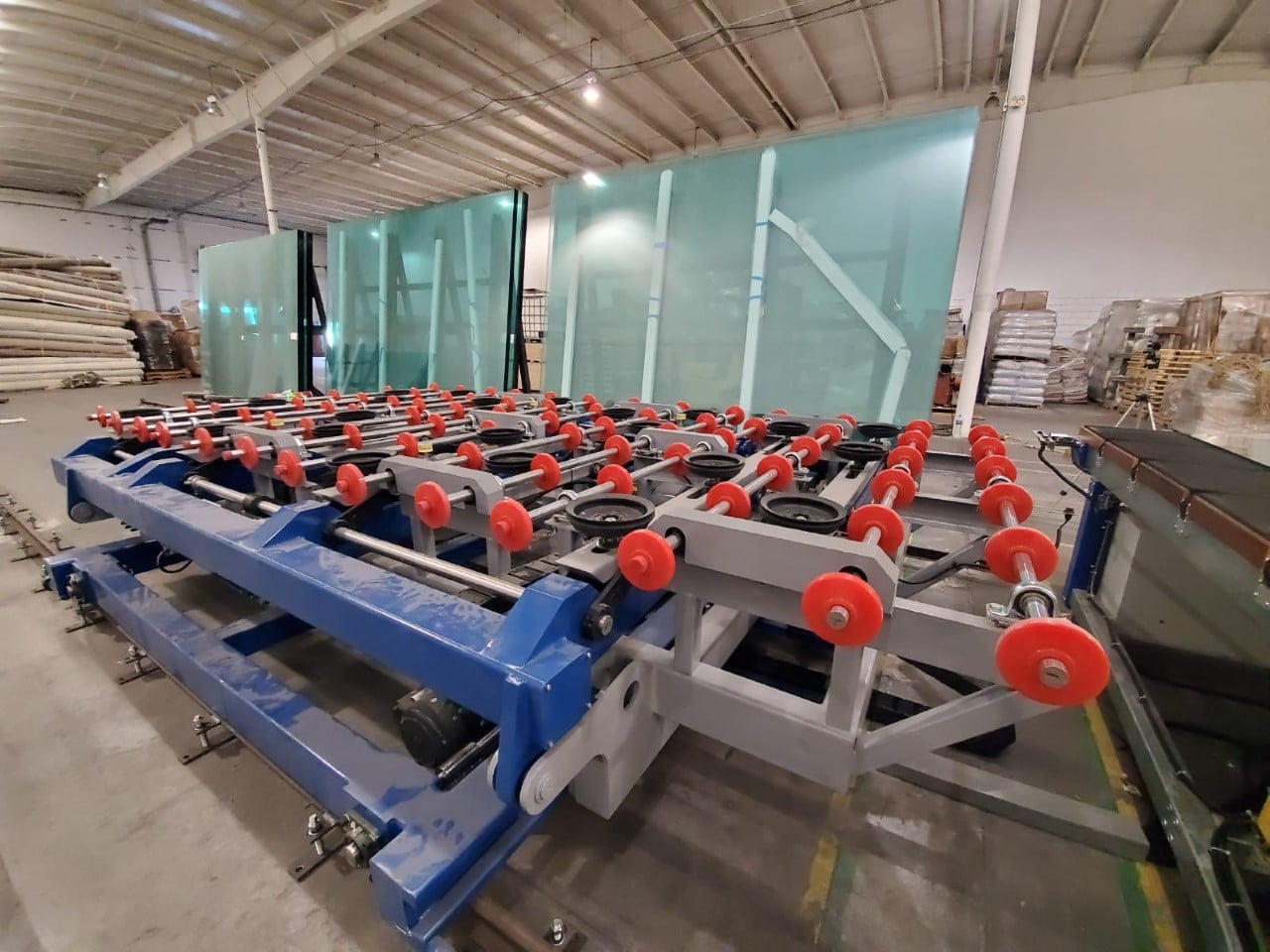

SL-40-26 Cutting Table with loading table
[/one_third]
[one_third_last]
[/one_third_last]
Edge deletion system for LOW E glass
