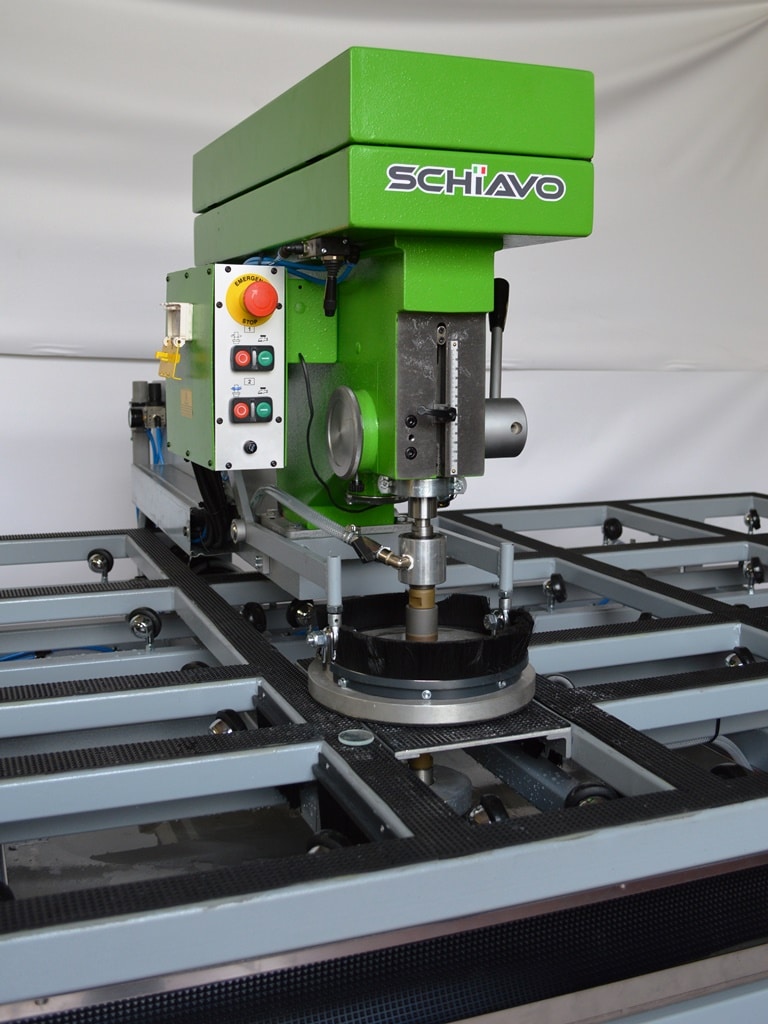

Horizontal Glass Drilling Machine
|
Specifications:
|
|
|---|---|
|
Glass Thickness:
|
1/8" to 3/4" (3 to 19 mm)
|
|
Overall Footprint of Machine
|
79'' x 66'' x 66''
|
|
Minimum Hole Diameter:
|
2mm
|
|
Maximum Hole Diameter:
|
100mm
|
|
Speed:
|
1350-1900 rpm
|
|
Voltage:
|
400V - 50Hz
|
More Details:
This machine is suitable for drilling holes in different thickness of glass. The drill machine has both top and bottom drilling heads. This table can cut holes on flat glass. This machine is made in Italy.

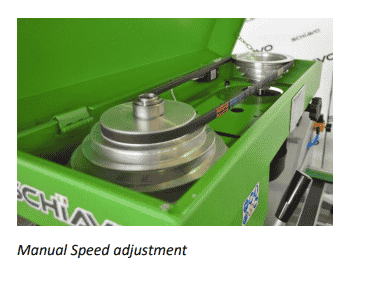

• Manual Speed Adjustment

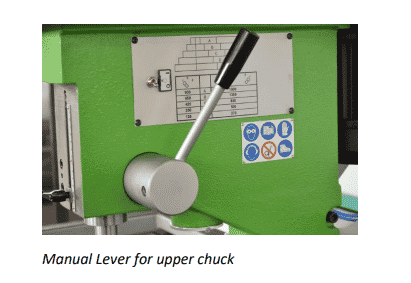

• Manual Lever for upper chuck

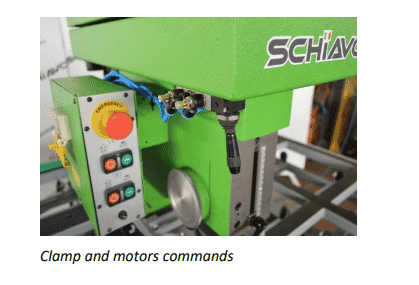

• Clamp and motors commands
Controls
All electrical controls are located in machine mounted switch boxes. Built to OSHA requirements, utilizing CE, CSA and UL Certified components.
Utilities
Voltage: Three Phase, 400V -50 Hz
Power: 2,5 Kw
To request a quote please fill out this form:
Financing Available
Best pricing plan for you and your business
- $0 Down Program - An easy way to get the equipment you need quickly with no money up front
- 90 Day Deferral Program - This is a great way to generate income on the equipment purchase
Make: Schiavo
Model: Star Drill Pro
Glass Thickness : 3-19 mm
Min. Hole Diameter: 2mm
Max Hole Diameter: 100 mm
Speed : 1350-1900 rpm
Installed Power: 2,5 Kw
Voltage: V400 V – 50 Hz
Drill Bits: Drill bits are 1/2” Thread 75mm Belgium Mount
Overall Dimensions: 2000 x 1670 x 1665 mm
Weight: 300 Kg
Country of Origin: Italy
Machine Description:

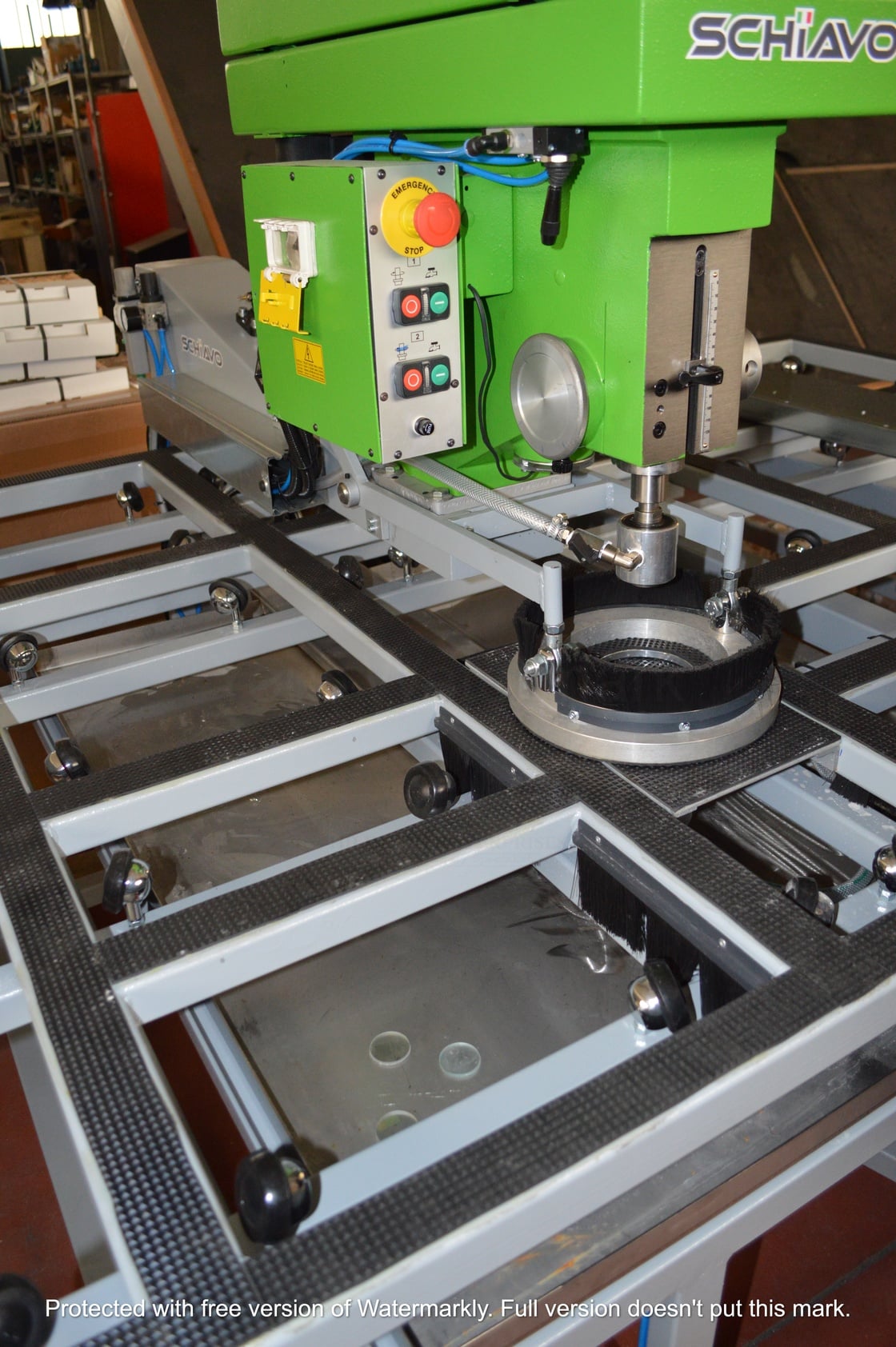

Semiautomatic double head drilling machine, equipped with castor-wheels table 1400×2000 mm to
support glass. Max drilling distance: 1000 mm. N° 2 motors for drilling, top motor with manual movement
and bottom motor with pneumatic movement. Speed motor adjustable on 5 different speeds changing
the belt position. N° 2 independent water pumps. N° 2 water tanks made of stainless steel. N° 1 table for
glass support 2000×1400 mm with pneumatic lifting castor wheels.
Additional Features Below:
