2016 Forel IG Line
| Specifications: | |
|---|---|
| Power: | 400V / 50/60Hz |
| Year: | 2016 |
| Make: | Forel |
| Model: | Vertical IG Line |
| Condition: | Currently In Operation |
More Details:
https://www.youtube.com/watch?v=IEIcJf3p15g
Specifications:
This line is made up of:– Feed conveyor;- Washing machine body;- Group of recycling tanks;- Fan casing;- Outfeed conveyor
Make: Forel
Model: Vertical IG Line
Type: 2.5m x 4.5m T-Spacer Applicator and Argon Press
Year: 2016
Voltage: 400V
Frequency: 50/60Hz
Power: See attached List
Air: See Drawing (Seal Bot, Tape applicator, T-spacer Applicator,
Water: See Drawing (For Washer)
Argon: See Drawing (For Press)

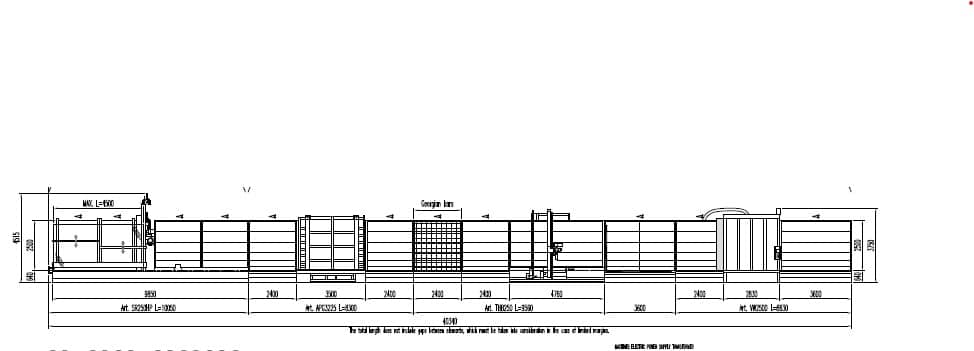

Overall Dimension L: 40340mm (132.3ft)
Overall Dimension W: 5212mm (17ft)
Overall Dimension H: 3740mm (12.3ft)
Min Glass Size: 320mm (14.2”) x 180mm (7.08”)
Max Glass Size: 4500mm (177.1”) x 2500mm (98.4”)
Max Glass Size (Gas Fill): 3200mm (126”) x 2500mm (98.4”)
Glass Thickness: 3mm to 40mm (possible to run single strength)
Speed: 780mm/sec
Total Unit Thickness: 12mm to 80mm (.47” to 3.15”)
Spacer Thickness (Box Spacer): 6mm to 32mm (.23” to 1.26”)
Spacer Thickness (T-Spacer Applicator): 8mm to 24mm (.31” to .94”)
Max conveyable weight: 200kg/m
General Description:
3 Sided Offsets w/ 4 sided capability
– Shapes
– Argon
– Double IG
– Triple IG
– Manual Box Spacer or
– Automated T-Spacer
– Applicator
– Muntin Bar Grid Station
Location: Midwest, USA
Condition: very good working order – operating daily producing 5000-6000sqft of
commercial IGU every day.
Spare Parts:
Many spare parts are available and would be included with the machine. A detailed
list can be provided
Individual Component Information
Description: Sealing Robot
Model: SR250HP
Year: 2017
Voltage: 400V
Description: Argon Press
Model: APG3225
Year: 2016
Voltage: 400V
Description: T Spacer Applicator
Model: TBB250
Year: 2016
Voltage: 400V
Description: Tape Applicator
Model: CT2000
Year: 2016
Voltage: 400V
Description: Vertical Washer
Model: VW2500
Year: 2016
Voltage: 400V
Condition: Currently in working Operation.
