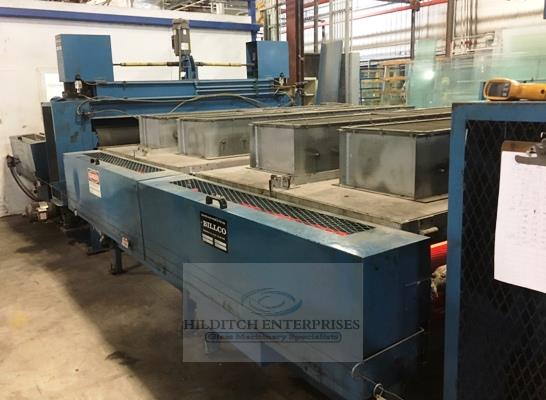

Make: Billco
Model: Infrared Glass laminating Niproller line
Type: 84″ capacity pre-heat oven/nip-roller/main oven/Nip roller/Control panel & operator interface
Year: 2002
Power: 480 Volt,60Hz, 305 Amps FL
Overall Dimensions: 282″ L ( 23.5 feet) x 102″wide ( 8.5 ft ) x 91″H ( 7.5ft )
Passline: 36″
Min glass size: 12″ x 12″
Max glass size: 84″w x 168″L
Laminated thickness range: 1/4″ – 1 5/8″
Speed: 1-24 ft/min
Location: Southern USA
Notes; Line is being used daily to produce 1500 sq ft if laminated glass. will be removed from service February 2018
Spare parts included: Back up Allen Bradley operator control panel. Brand new nip roller cylinder( 5k value )
Additional notes: Some emitters need to be replaced. Some fiberglass sleeves on roller conveyor will need to be replaced. A few air leaks on regulators.
